ZK2125×2C/1500 Laterally Travelling Gun Drilling Machine

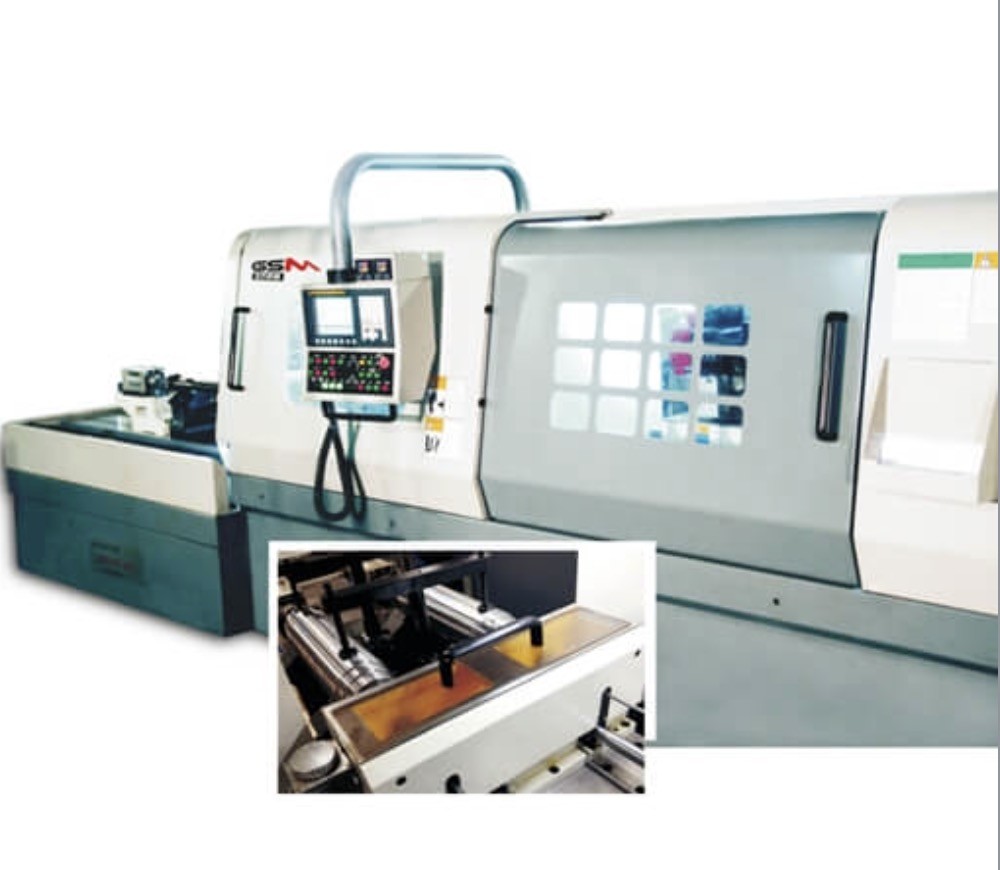

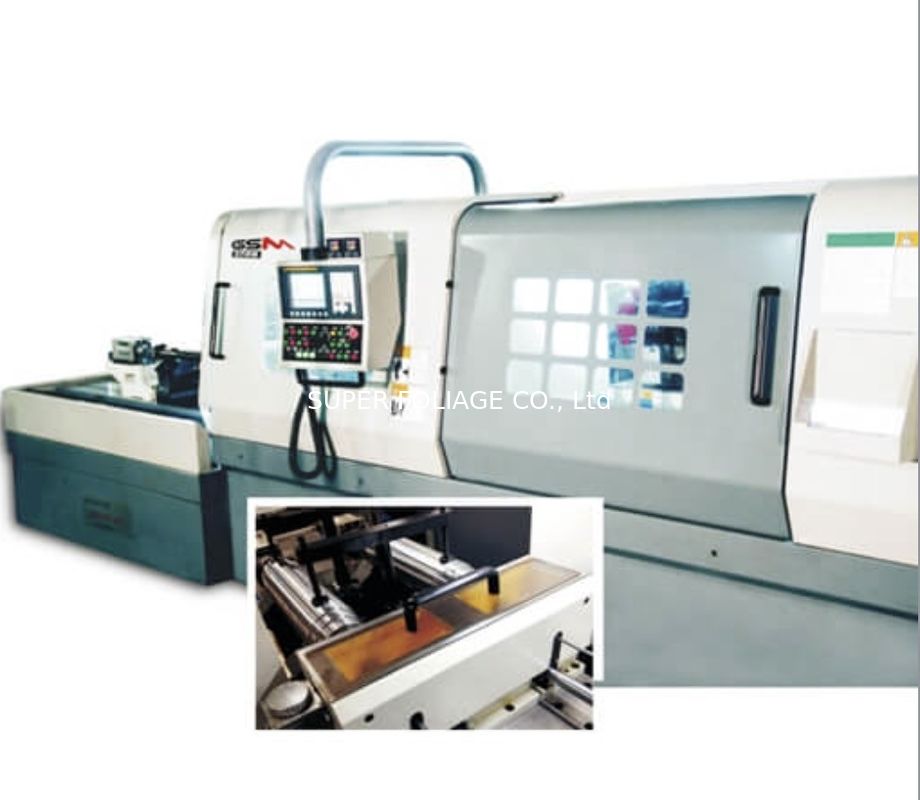

ZK2125×2C/1500 gun drilling machine with laterally travelling function

Main Parameter

Drilling Ability

1. No. of Spindle: 2 PCS

2. Distance between Spindle Center: 350mm

3. Drilling Diameter Range: φ5～φ25.0 mm

4. Bench Area: 1600*600 mm

5. Max. Drilling Depth: 1500 mm

6. Wokrpiece Diameter Range: ≤φ250 mm

7. Max. Length of Workpiece: 1500 mm

8. Bench Lateral Moving Distance: 200 mm

Drilling Speed

1. Max. Drill Stem Rotary Speed: 5500 r/min

2. Feed Speed Range: ≤1500 mm/min

3. Fast Move Speed ≤2000 mm/min

Drilling Accuracy

1. Skewness: ≤1.0/1000 drilling depth(length to diameter ratio≤100)

2. Dimensional Accuracy: IT7～IT11

3. Roughness: Ra0.8～Ra3.2

Machine Power

1. Power of Drill Stem Motor: 7.5 KW

2. Power of Oil Pump Motor: 2×7.5 KW

3. Power of Feed Motor: 1.8 KW

4．Power of Oil Cooling Machine: 3. 5 KW

5. Total Power: 40KW

Hydraulic System

1. Max. Flow: 120 L/Min

2. Max. Pressure: 12 MPa

3. Filter Accuracy: 20 um

4．Oil Tank Capacity: 1360 L

Basic Dimension & Weight

1. Ground Area:(L*W*H) 6000*2700*1800 mm

2. Distance between Drill Stem Center and Ground: 1070 mm

3. Height from Drill Stem Center and Guide Rail: 242.0 mm

4. Weight of Hydraulic System: 2.5 T

5. Weight of Main Engine: 7.5 T

Typical application:concentric holes and eccentric holes of shaft parts, deep hole drilling of plate parts.
